I remember, distinctly, the first time I used my mortiser. It was SO cool to be able to punch a square hole into a piece of wood, I had to run into the house and drag my wife back out to the shop to see it. OK, making a square hole wasn’t so hard, but I learned that it took careful set up to make the hole accurately and correctly. Here are some shop-proven set-up tips to help you get the most out of your mortise machine.
Know the Players
Mortise machines aren’t complicated, but there’s a little jargon involved. The hole is made by two components working together, the auger and the hollow chisel.

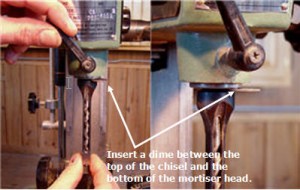

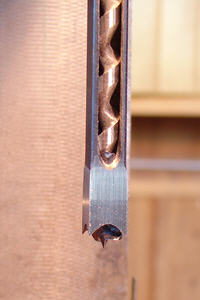

It’s critical to get the auger to lead the cut by just the right amount or the hollow chisel won’t work effectively. If you’ve got a dime to spare, it’s easy to get this just right.Insert the hollow chisel and auger into the mortiser, together. Lock the hollow chisel into the mortiser head and the auger into the chuck. Don’t sweat the relationship between the auger and hollow chisel yet.
Make your mortises 1/16″ deeper than the tenon length.Set the depth of the chisel by marking out the mortise depth on the end grain of the material being mortised. Lower the chisel until the long points of the chisel meet the lay out line. Lock the stops on your machine.
Use the fence to guarantee that the distance from the edge to mortise is the same on every joint.Locate the fence by working off the point of the auger, which is the center of the mortise. Center the mortise on the leg by holding one face against the fence and slightly dimpling the top surface with the auger point.
The hollow chisel must be parallel to the fence and to the face of your work, in order to cut a smooth-walled mortise.Position the leg against the fence and slide it against the side of the hollow chisel. Check for a gap where the chisel doesn’t completely meet the end of the leg.
There’s a lot of friction on the hollow chisel and, as you raise it out of the wood, the wood wants to lift with the chisel. The hold-down prevents the wood from lifting, which will also prevent the wood from racking and twisting on the chisel.Position the hold-down on your mortiser so it’s as close as can be to the top of the material, without dragging on it as you slide the part underneath.

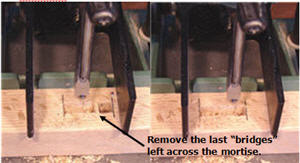

It’s best to cut the mortise in the correct sequence. The goal is to have wood on four sides of the chisel or two sides of the chisel– never on three sides. With wood on three sides. the chisel can deflect, and possibly bend.Hole #1 goes at one end of the mortise.
With a mortise complete, make certain all the settings are correct. You can push a ruler into the mortise to make sure the depth is right.Check the walls of the mortise to make sure they’re not ‘saw toothed.’ A saw toothed wall is caused by the chisel not being parallel to the fence.
Photos By Author
